3. OIL-Less Piston Pumps (Serial Connection type)

본문



Model Number
- 40RND, 50RND, 60RND, 70RND

Applications
- Medical, Dental & E.N.T. Equipments
- As an oil-less air compressor and Vacuum pump
- Oxygen Concentrator & Ozone generator
- Semi Conductor processing , Chip mounter
- Packing machine, Food processing
- Environmental equipments - Industrial equipments

Technical Specifications

OIL-Less Piston Pump , Double Head Type (Serial Connecting)

Model

40RND

50RND

60RND

70RND

Head Config

Vacuum Only

Free Flow

33 Lpm (50Hz)

39 Lpm (60Hz)

33 Lpm (50Hz)

39 Lpm (60Hz)

33 Lpm (50Hz)

39 Lpm (60Hz)

33 Lpm (50Hz)

39 Lpm (60Hz)

Max. Vacuum

720 mmHg

735 mmHg

740 mmHg

745 mmHg

Max. Pressure

NA

NA

NA

NA

Connecting Type

PT 1/4 "

Dimensions

240(L) x 178(H) x 118(W) mm

Installation Hole

202 X 84 mm / M6 Tap

Weight

7.2 Kg

Noise Level

51~55 dB

Motor Power

250 W

Motor Type

Capacitor start, Equipped with cooling fan & Thermal Protector

Power source

100~110VAC(50/60Hz), 200~220VAC(50/60Hz), 230~240VAC(50Hz)

★ We have various specification out of data above, please contact us for required specifications or future information.




 Surface Treatment option( Normal & PTFE coating type)

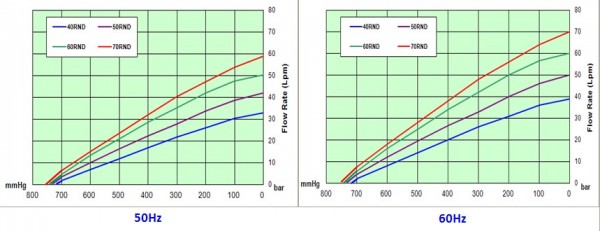

 Performance Curves

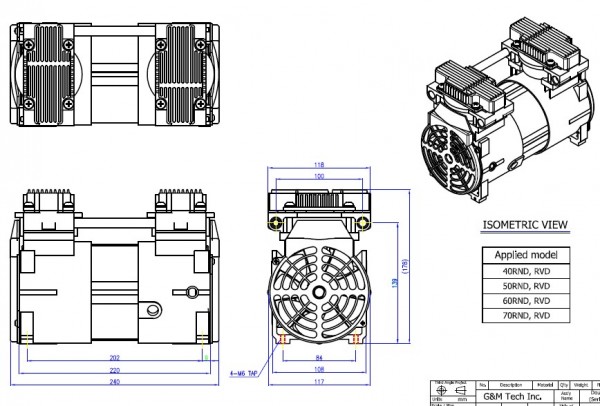

Drawing

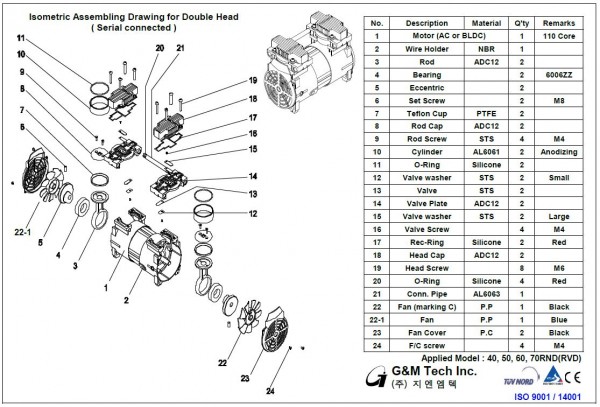

 Assembly Drawing
