Diaphragm pump (AC version)

본문


Model Number
- 35DNS, 35DND-P, 35DND-S



Applications

  • Designed for class B Autoclave
  •  Medical , Dental & E.N.T. equipments
  •  Skin care / Vacuum massager
  •  Aesthetic machine
  •  Vacuum tank system for SMT line
  •  Packing machine / Food processor
  •  Environmental equipment
  •  Fuel Cell system





Technical Specifications



 OIL-Less Diaphragm Pump (AC version)

 Model

Single Head

Double Head

 35DNS
  35DND-P

(Parallel connection)

 35DND-S

(Serial connection)

 Head Configuration

 Vacuum only

 Free Flow Rate

 28 Lpm (50Hz)

 33 Lpm (60Hz)

 50 Lpm (50Hz)

 58 Lpm (60Hz)

35 Lpm (50Hz)

 39 Lpm (60Hz)

 Max. Vacuum

 580 mmHg

 590 mmHg

690 mmHg

 Max. Pressure

 NA

 Connecting Type

 PT 1/4" Tap

 Dimensions

Single Head : 170(L) x 148(H) x 104(W) mm

Single Head : 229(L) x 148(H) x 104(W) mm

 Installation Hole

 53 x 78 mm

 Weight

 2.6 Kg

 3.7 Kg

 Noise Level

 45~48 dB

 Motor Power

80W(50Hz) , 87W(60Hz)

 Motor Type

 Capacitor start, Equipped with Thermal Protector

 Power Source

 100~110VAC(50/60Hz), 200~220VAC(50/60Hz), 230~240VAC(50Hz)

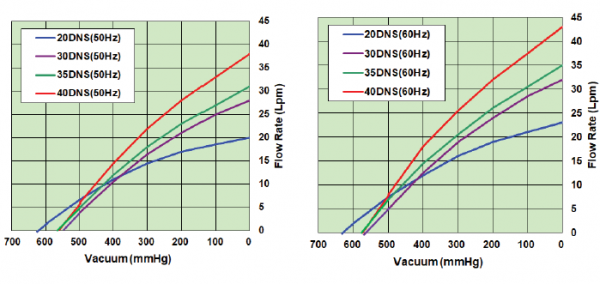

Performance Curves


     35DNS ( Single Head type )




    35DND-P ( Double Head-parallel connection type )



    35DND-S ( Double Head-Serial connection type )

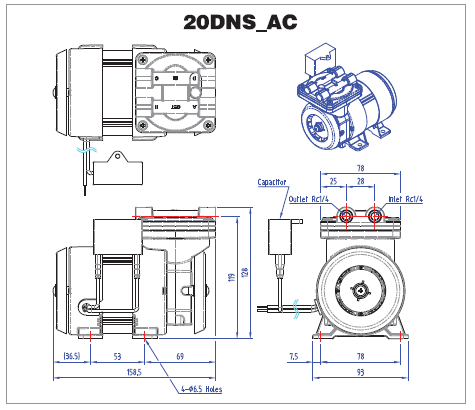

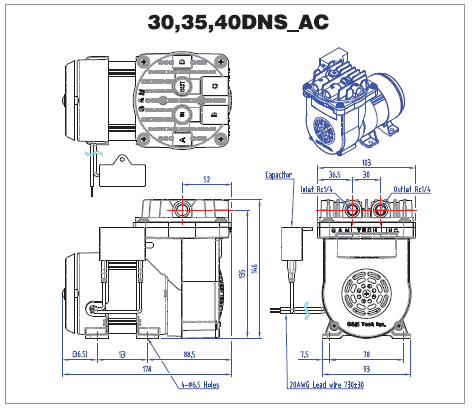

 Drawing

35DNS ( Single Head type )


35DND ( Double Head type )

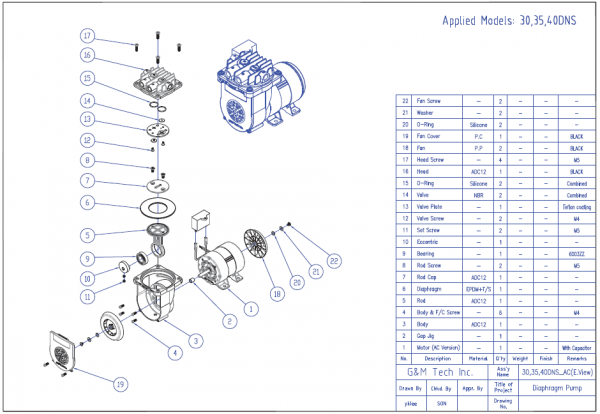

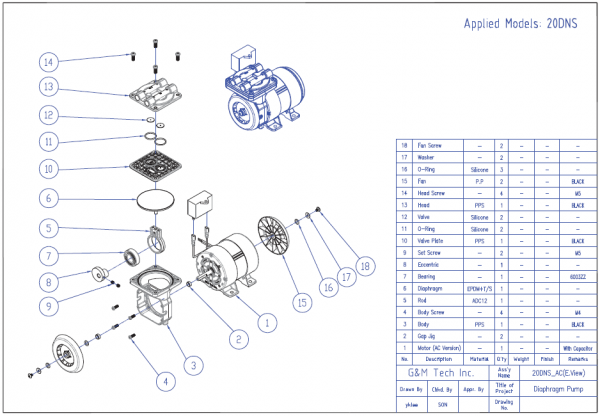

 Assembly Drawing


   Single Head      c9621906e62250bd25a2d1e6d614fa2a_1539308705_2715.PNG



   Double Head
