Speclalzed OIL-LESS Plston Pumps

OIL-Less Piston Pump (DC version)
PRODUCT   >   Piston Pump (DC)

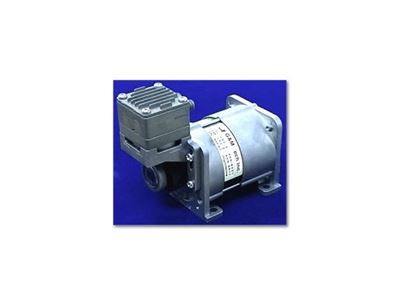

2. Mini OIL-Less Piston pumps (BLDC version)

첨부파일

본문







 Model Number

- Internal Driver type : 10, 12, 15, 20RNS

External Driver type : 25RNS-ED, 30RNS-ED


 Applications
- Fuel Cell system

- EV ( Electric Vehicle)

- DPF system for Diesel Engine

- Medical, Dental & E.N.T. equipment

   ( Portable Suction, Nebulizer, Sprayer)
- As an OIL-Less Air compressor and

   Vacuum pump
- Oxygen Concentrator & Ozone generator
- Semi Conductor processing , Chip mounter
- Packing machine, Food processing
- Environmental equipment

 Technical Specifications


Mini OIL-Less Piston  Pumps (BDC version, Single Head Series)

Model

10RNS

12RNS

 15RNS

20RNS

25RNS-ED

 30RNS-ED

 Voltage 12VDC24VDC 12VDC 24VDC 12VDC 24VDC 12VDC  24VDC 12VDC 24VDC12VDC24VDC
 Rated Current 1.7A1.0A 2.4A 1.2A 3.1A 1.6A 3.1A 2A 4.6A 2.8A 6.5A 3.8A
 Driver Type Internal typeExternal Type (GED-2425D)

 Free Flow Rate

10 Lpm

12 Lpm

15 Lpm

19 Lpm

24 Lpm

29 Lpm

 Max. Vacuum

 490 mmHg

540 mmHg

600 mmHg

 650 mmHg

600 mmHg

650 mmHg

 Max. Pressure

 2 bar

 2.5 bar

1 bar

 4.5 bar

 NA

6 bar

5 bar

6.5 bar

Connection type

Barb Type (R1/8" Tap availabe as option)

 Dimensions

75(W) x 106(H) x 124(L) mm

 Weight

 0.8 Kg

 Motor Type

BLDC(Brush-less DC) version , Insulation class E

Working ambient Temp.

0 ~ 40 ℃

★ We have various specification out of data above, please contact us for required specifications or future information.

★ Please contact with factory for information of Dual Head series.

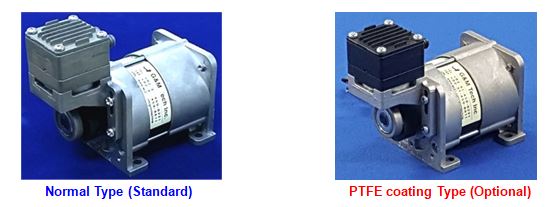

 Surface Treatment option( Normal & PTFE coating type)

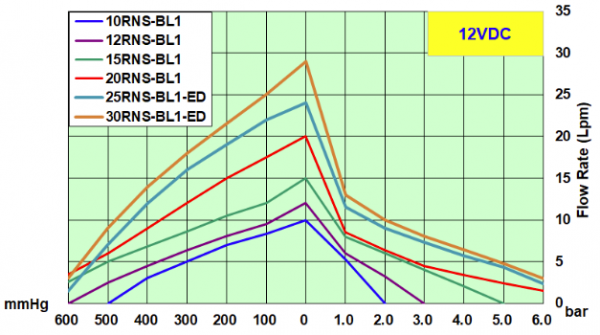

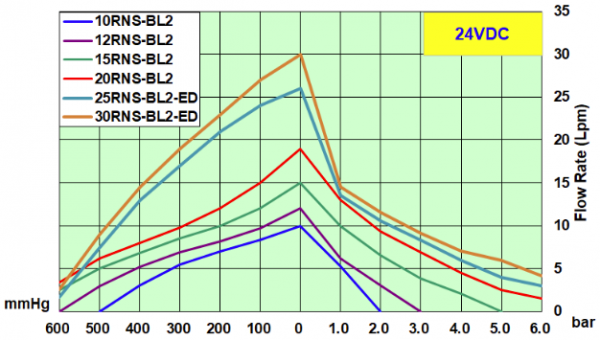

 Performance Curves

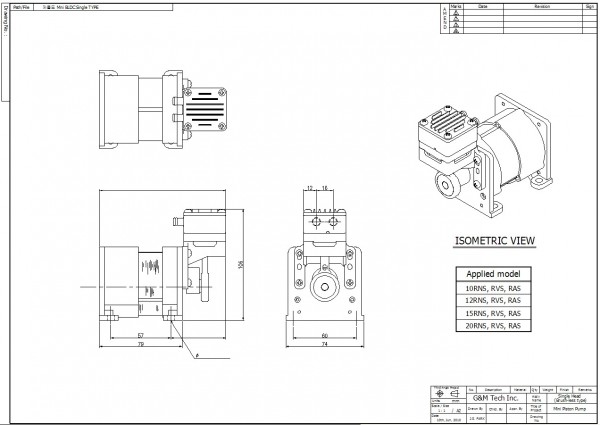

Drawing

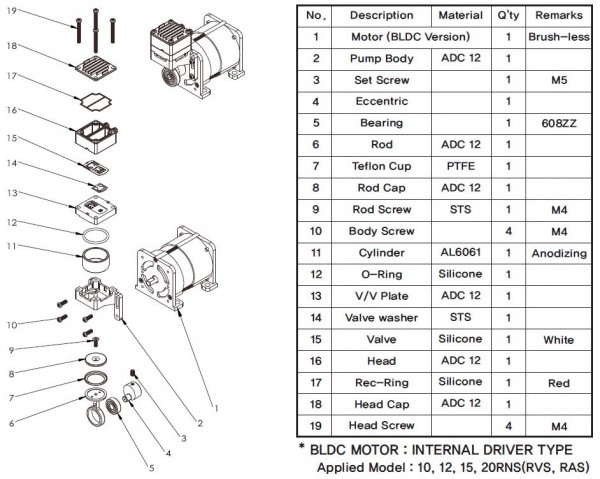

 Assembly Drawing
